Unload & transfer
Move pallets from dock to buffer or staging.
Food factory material handling
Move every pallet with the right vehicle.
Receiving dock, production floor, cold store or high rack: COWPIGGY matches the truck to the load, aisle, lift height, floor and duty cycle.
Food factory fleetElectric handling rangeConfigured & supplied by COWPIGGY
01 / Pallet journey
One factory. Four different handling jobs.
Using one vehicle for every task can waste aisle space, energy and operator time. Start by separating horizontal travel from lift and storage work.
Line replenishment
Feed materials and remove finished goods.
Stack & retrieve
Place pallets at low or medium lift heights.
Reach & store
Work in narrower aisles and higher racking.
02 / Reference equipment
Build the fleet around the task.
Each reference family covers a different movement pattern. Final specification must confirm load centre, attachment, lift height and local operating conditions.

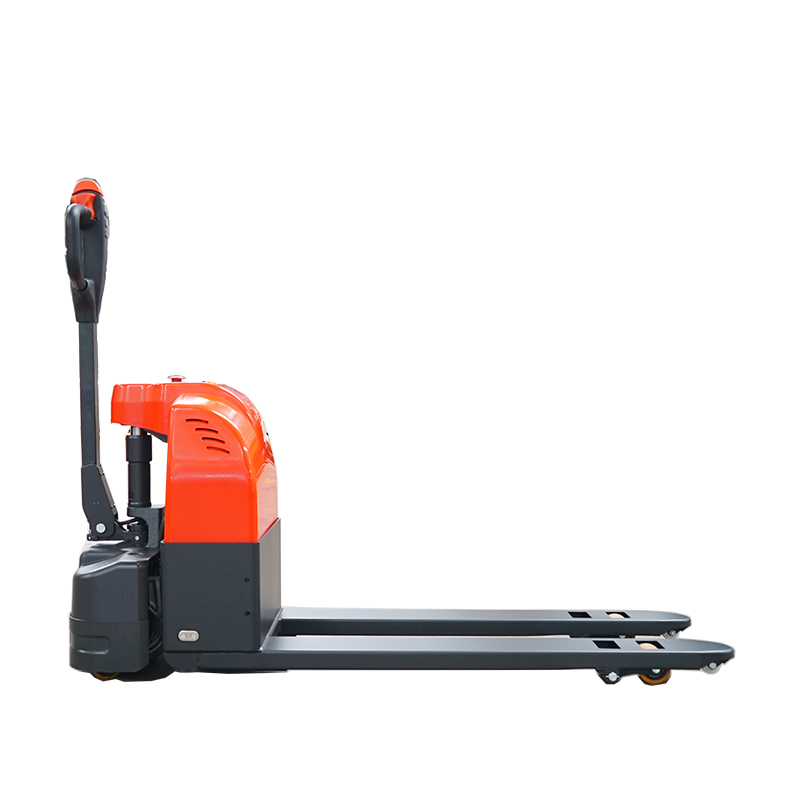

Floor transport / reference EPT15W
Electric pallet truck
Compact horizontal movement for receiving, staging and short-to-medium internal transfers.
- Rated load
- 1.5 t*
- Overall width
- 574 / 705 mm*
- Turning radius
- 1,460 mm*
- Travel speed
- 4.2 / 4.6 km/h*

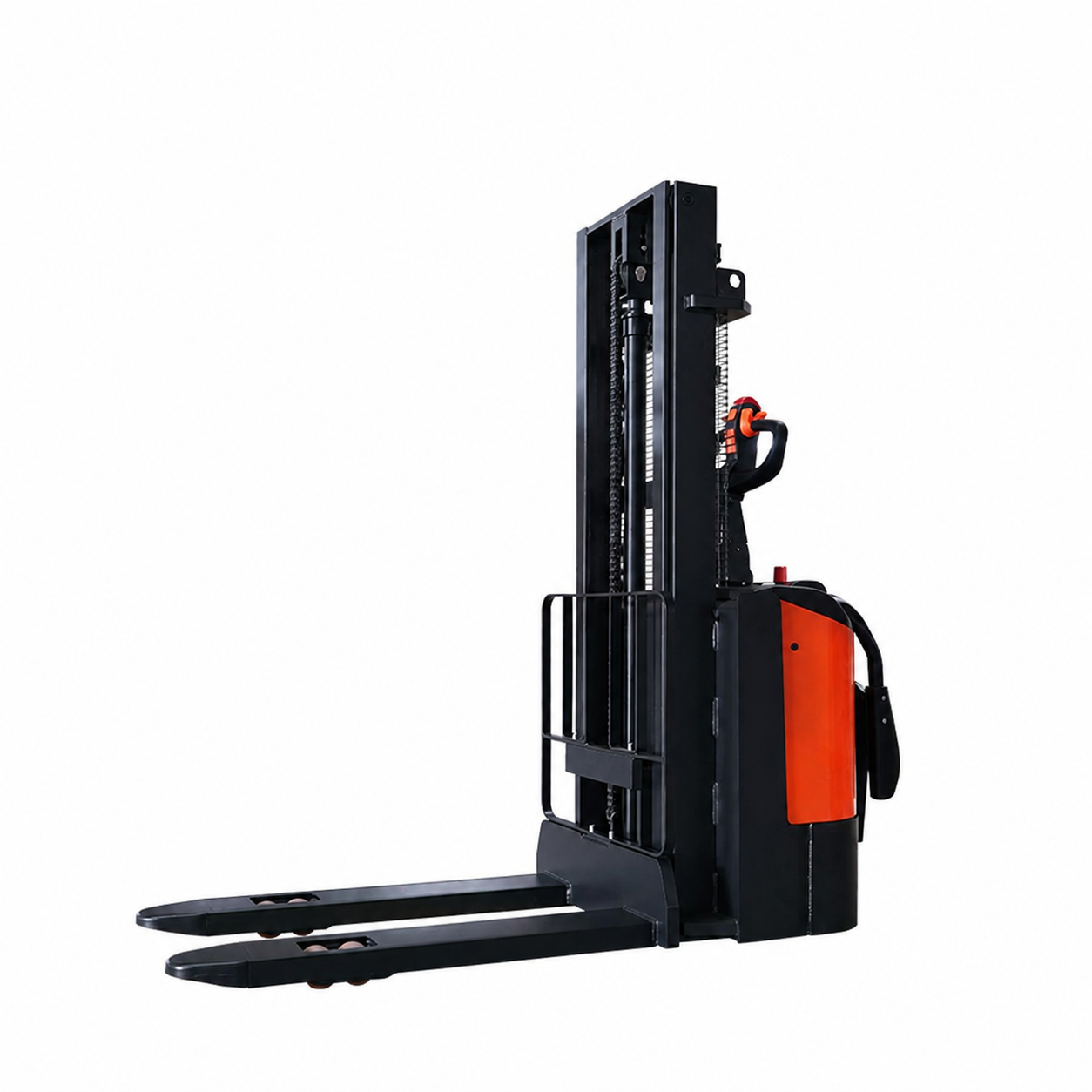

Low-medium stacking / reference PSE15/20-C
Electric stacker
Lift and stack pallets where a full counterbalance forklift is unnecessary or aisle space is limited.
- Rated load
- 1.5 / 2.0 t*
- Reference lift height
- 1,600–3,600 mm*
- Overall width
- 820 mm*
- Turning radius
- 1,487 / 1,670 mm*

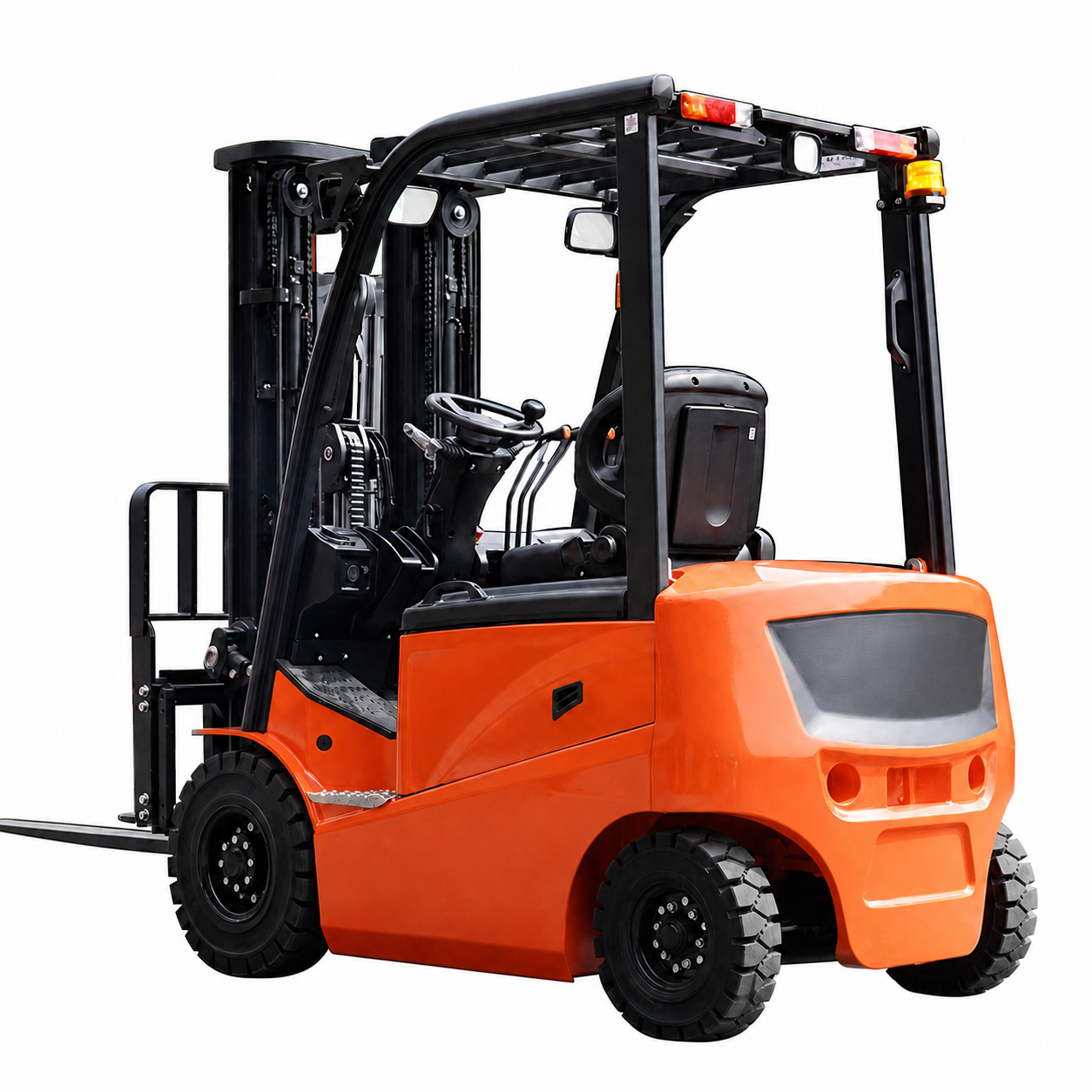

Production & yard / reference FE4P16/20QC
Electric counterbalance forklift
A general-purpose seated truck for production, loading and mixed indoor handling where free lift approach is required.
- Rated load
- 1.6 / 2.0 t*
- Reference lift height
- 3,000 mm*
- Overall width
- 1,150 mm*
- Turning radius
- 1,990 mm*

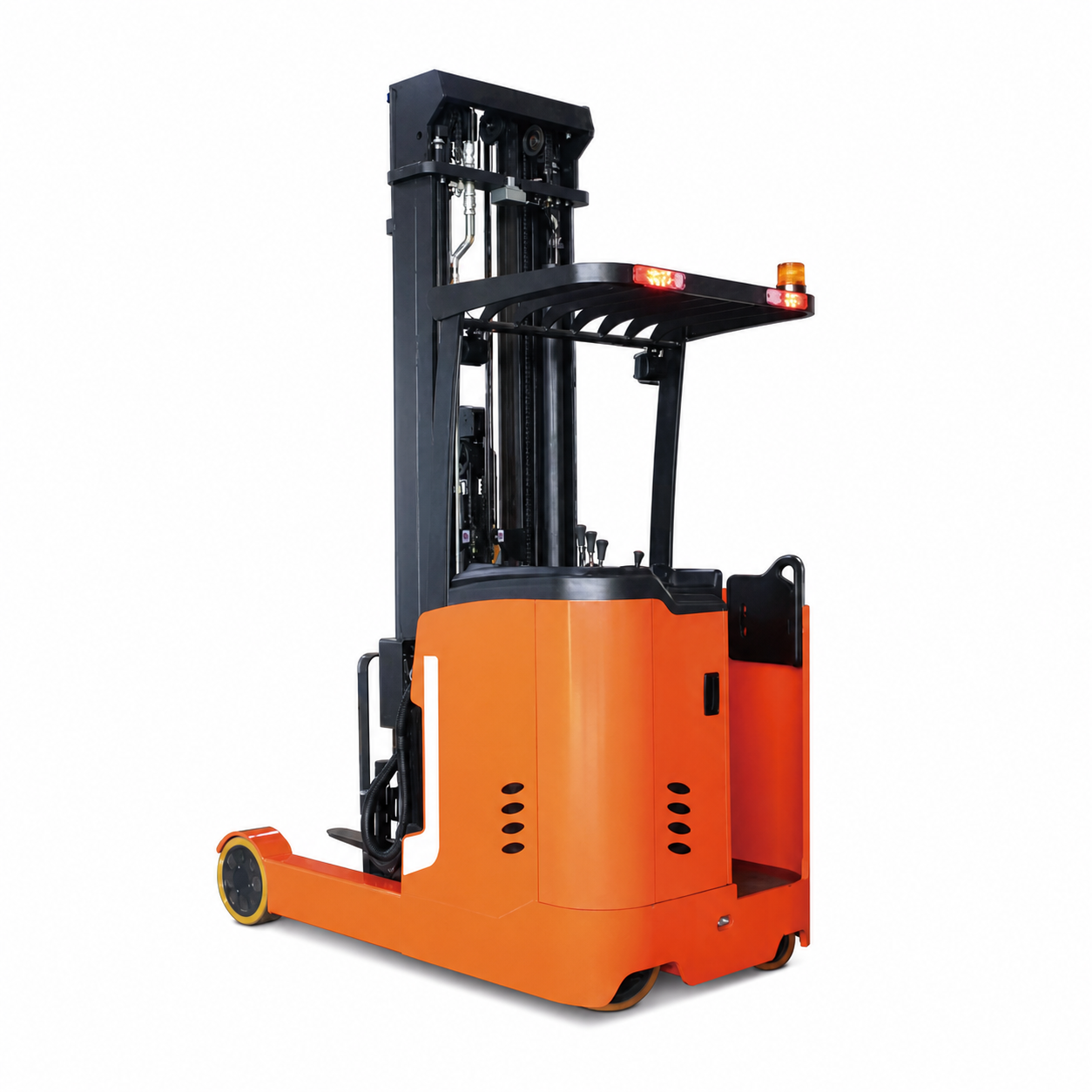

High rack / reference RT15/20/25ST2
Electric reach truck
For high-frequency pallet storage where reach capability and narrower aisle operation matter.
- Rated load
- 1.5 / 2.0 / 2.5 t*
- Overall width
- 1,100 mm*
- Turning radius
- 1,685–1,885 mm*
- Battery reference
- 48 V*
*Supplier reference data. Residual capacity changes with lift height, load centre, mast and attachments; final specification requires confirmation.
03 / Food-factory context
The environment belongs in the specification.
Food plants introduce cleaning, temperature, hygiene zoning and traffic constraints that a model name alone does not answer.

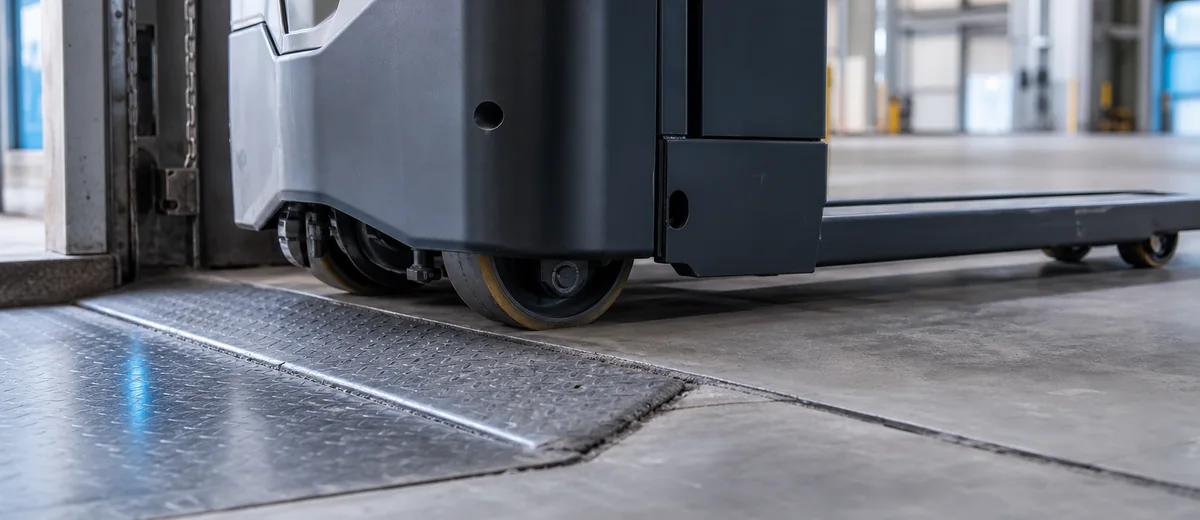

Surface & gradients
Confirm floor condition, ramps, thresholds and dock plates.

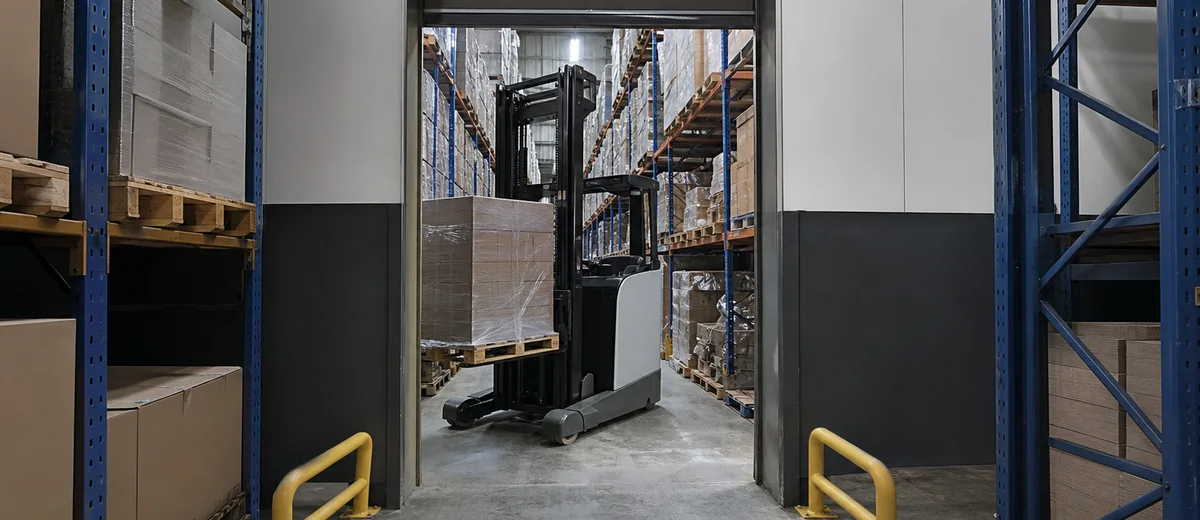

Aisle & doorway
Measure the load, right-angle stacking aisle and clear height.

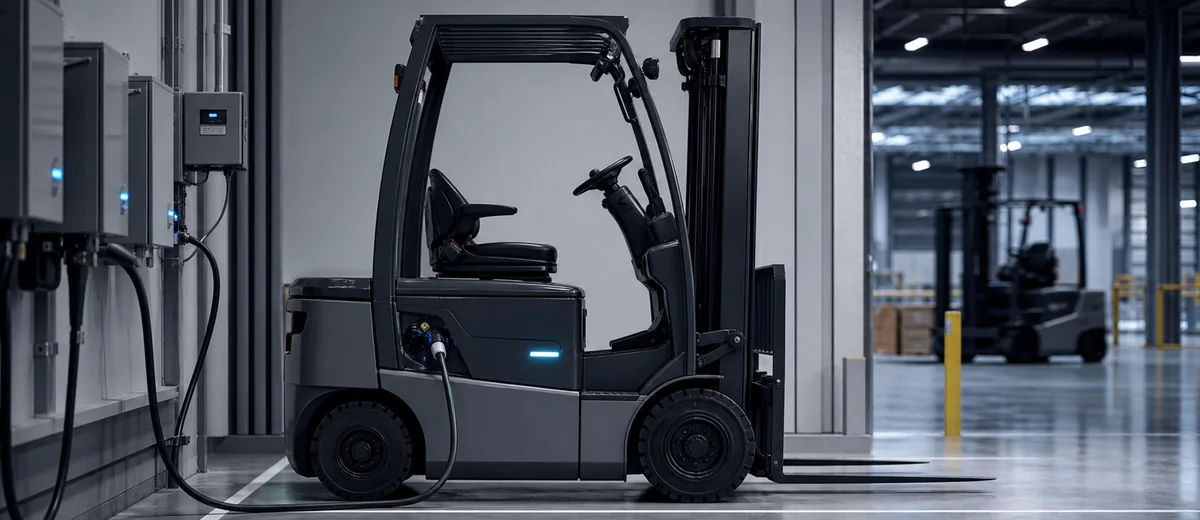

Duty cycle
Travel distance, lifts per hour, shifts and charging windows.

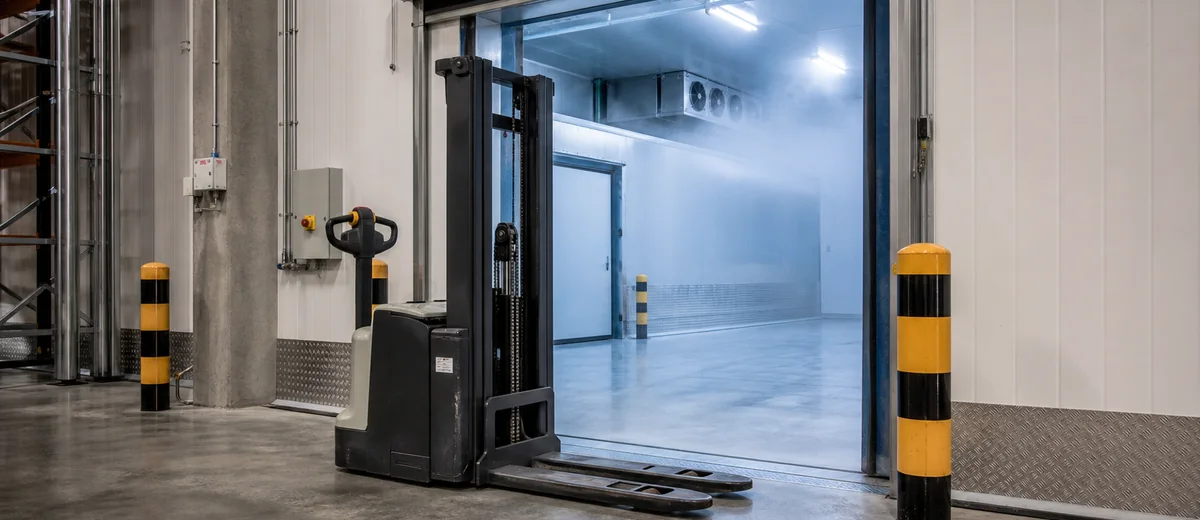

Operating environment
Ambient, chilled, freezer, wet-cleaning and corrosion exposure.
04 / Selection brief
Six facts prevent the wrong truck.
A useful inquiry includes the load and the space around it—not only the requested tonnage.
- 01Load and load centre
Maximum pallet weight, dimensions and stability.
- 02Lift and rack
Maximum fork height, top beam and required residual capacity.
- 03Aisle geometry
Right-angle stacking aisle, doorway and turning space.
- 04Travel pattern
Distance, gradients, floor transitions and traffic.
- 05Energy plan
Shift length, charging windows and battery preference.
- 06Environment
Indoor/outdoor, temperature, moisture and hygiene zoning.
Request a handling configuration
Send the pallet, rack and aisle data.
COWPIGGY will map the task to a reference family and identify the mast, battery, attachment and export information needed next.
